Common Uses of Air Pressure Transducers

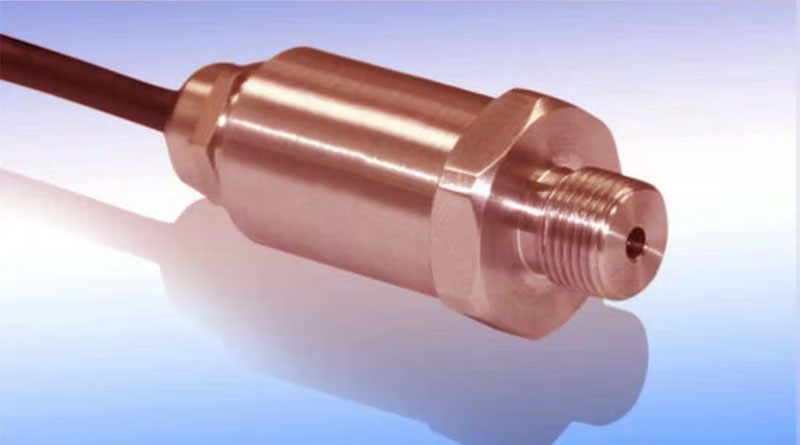

Air Pressure Transducers

From measuring atmospheric pressures in barometers, pressure in pumps, vacuums, steam temperatures, and pressure in submerged lines, there is no limitation to applying pressure transducers in the world of pressure and temperatures!

A pressure transducer is a very useful tool in industrial and laboratory data collecting and control systems. Some of the typical uses for pressure transducers are listed below. It is important to note that there are virtually as many uses for pressure transducers as there are different types of pressure transducers.

Air Pressure Transducers

Measuring Differential Pressure

One transducer port will typically be referenced to the atmosphere, allowing for a non-compensated measurement. This is used in cases where a pressure differential exists between two points, and there is no need to compensate for any elevation difference. It is also used when no other sources of differential pressure can be measured with an air pressure transducer.

Measuring pressure in pumps

Anyone who has ever pumped gas at a station knows that the important task is getting the right amount of air in your tank.

The same thing applies to measuring liquid pressure in a pump. You want to know how much water or oil is passing through your system, but if you’re not using a transducer, you won’t know what’s going on until it’s too late.

A pressure transducer is simply an electronic device that converts pressure into an electrical signal and then displays it as a number on an LCD screen or other device. The transducer is attached to the pump’s output and plugged into an analog input port on your controller or computer. It’s designed to work with any fluid—oil, water, steam — so hundreds of different types are available for sale today.

Subsea Pressure Monitoring

Subsea Pressure Monitoring may involve air pressure transducers to monitor pressure on subsea oil and gas pipelines and risers. This allows for early detection of pressure anomalies that could lead to a safety concern or an environmental incident.

Air pressure transducers can be used in conjunction with other subsea sensors to accurately monitor the pressure on subsea pipelines, risers, and other equipment. The data collected from these sensors can then be used to detect any changes in pressure that could indicate a potential problem.

Pipeline Leak Detection

Pipeline Leak Detection may involve air pressure transducers to detect leaks in pipelines by monitoring pressure changes along the pipeline length. The pressure transducer can be placed at strategic locations along the pipeline, and the pressure readings are monitored and compared over time.

A decrease in pressure in one pipeline area could indicate a leak. This is because the air pressure within a pipeline is usually somewhat equal throughout its length, and any decrease or increase in pressure in one pipeline area could indicate a leak. This method is especially useful for detecting small, slow leaks that might go undetected by other methods.

Measuring Absolute Pressure

Absolute pressure can be used to determine the densities of gases. Absolute pressure is the pressure at which neither gas nor liquid can be compressed. It is measured in pascals (Pa).

The absolute pressure transducer measures a tank’s absolute pressure. The sensor is mounted on the tank and connected to an analog-to-digital converter.

The output from this transducer is an analog signal which can be converted into a digital value. The probe is located at the bottom of the tank and measures the pressure above it. It would help if you used high-quality probes to get accurate readings and ensure they are properly maintained.

Measuring Negative or Vacuum Pressure

Air pressure transducers are commonly used to measure negative or vacuum pressure. This is because they can accurately measure very small changes in pressure. They are also very stable, meaning they can maintain a constant pressure reading over time. This makes them ideal for vacuum systems or applications requiring precise pressure measurements.

By measuring the pressure of the air around us, we can determine the amount of force exerted by atmospheric pressure. This information can calculate the wind speed or determine the pressure inside a sealed container. Additionally, air pressure transducers can measure the pressure of gases in various settings, such as in medical respiratory equipment or industrial settings.

Monitor Surge Pressure

Air pressure transducers are commonly used to monitor surge pressure in pneumatic systems. The transducer can indicate how much pressure is being lost in the system by measuring the pressure of the air before and after it passes through a surge tank. This information can be used to adjust the air pressure in the system to maintain optimal performance.


Air pressure transducers are used in automotive and industrial applications to measure and record the air pressure in a system. But you are stuck on the quality and type of transducers. In that case, it will be best if you try products from MicroSensor. Over the years, they have remained a reputable manufacturer and supplier of pressure sensors and other pressure measurement products. They offer a wide range of products for use in the medical, food and beverage, HVAC, and automotive industries.
